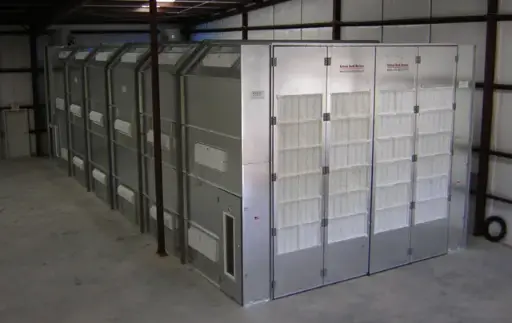

Truck Booth, Pit Type Down Draft, Drive Through, Heated
16' wide X 16' tall X 64'6" long inside dimensions
21' wide X 20' tall X 65' long outside dimensions (does not include mechanical)
2 - 42" Diameter Exhaust Fans With 10HP 3PH Motors
60,000 CFM Combined
Mounted On Elevated Fan Boxes
Double Row Exhaust Pit (concrete work by others, not included)
7' wide X 56' long
Grating, Pit Supports & Filter Trays Included
1.5" Thick Grating With 1/8" Bearing Bars, End Banded, Galvanized
700 pounds per square foot capacity
56 - 48" 2 Row LED Lights
Class I Division II Inside Access Lights
Bi-Fold Entry Doors With Observation Windows On Both Ends
12' wide X 16' tall nominal opening
11'6" wide X 15'9" tall clearance
4 - Personnel Door With Observation Window
18ga G90 Domestic Galvanized Sheet Metal
Structural Steel Supports
Pre-Punched For Nut & Bolt Assembly
Hardware Included
Powder Coated White Option
Heated Air Make Up Unit, Direct Fired Unit 2
3 Million BTU's Each Direct Fired Units
Includes Stands, Pre-Filter Box With Washable Filters
Includes 8' Of Supply Duct To Booth
Includes Dual VFD's For Balancing
20HP Motor
42" Diameter Rain Cap (automatic damper cap)
48" Diameter Intake Hood
42" Diameter Exhaust Duct (4' sections)
Crating Fee
Estimated Freight Charges (actual freight charges may vary)
Price is valid for 30 days
Price Does NOT Include Installation, Permits, Licenses, Electrical Wiring, Fire
Suppression System, Air Lines, Building Modifications, Offsets In Duct or
Trash Bin
Quote is based on standard metal building construction. Concrete, built-up and
standing seam roofs and tilt wall/masonry buildings will incur additional
charges

Inverter PTI.G 220v 14500A Spot Welder, which includes:
1 - G1 Standard “C” Arm
1 - G2 Wheelhouse Arm (Optional) included
1 - G4 500mm Extension Arm (Optional) included
1 – G9 C-X Arm
1 - Cap Removal Plier
1 - Shunting Pliers (Optional) Included
1 - Electric Boom w/ Tool Balancer
1 - Retractable Consumable Sheet
1 - Instruction Manual

Whip Hose, 10 ft, w/ inline blower 1
Bumper Mate 3 workstation 1
Tab saver Kit 1
Hot Spot Cordless Plastic Stapler 1

• Air Cooled Aftercooler
• Mounted Control Panel
• Low Oil Stop Control
• Electric Tank Drain
• Vibration Isolators

Whip Hose, 10 ft, w/ inline blower 1
Bumper Mate 3 workstation 1
Tab saver Kit 1
Hot Spot Cordless Plastic Stapler 1
Tier 2 Welding Rod Assortment 1
Tier 3 Welding Rod Assortment 1
Sensor Hole Cutting Kit 1
Bumper Rollers Dent Removal Kit 1
Auto Body Bag 1
Dent Drivers Dent Removal Tools 1
Shim Jim Tab Separator Tool 1
Compression Roller 1
1/2" Round Carbide Burr, 1/4" shank 1
Heavy Duty Tapered Burr, 1/4" shank 1
1/4" Round Carbide Burr, 1/4" shank 1
Dremel Drum Sander 1
Dremel Drum Sander Bands, 6 pack 1
Aluminum Tape, 1" wide, 180 ft long 1
Aluminum Tape, 2" wide, 180 ft long 1

Open-Front General Service Flat Deck 4-Post Lift
26 In. Wide Runways,
277.75 In.Overall Xl Extended Length
Internal Encapsulated Slide Block Design

Rolling Jack - Air/Hydraulic Operation
Adjustable Width
7,500 Lbs. Capacity
For 4P14, 4015 And 4115 Series Lifts

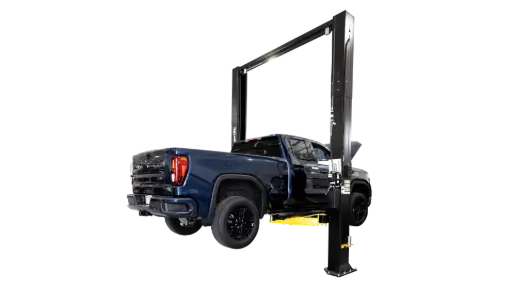

Symmetric 2 Post Lift, 3-Stage Front and Rear Arms, Mechanical Lock Release
(164 In. Height)

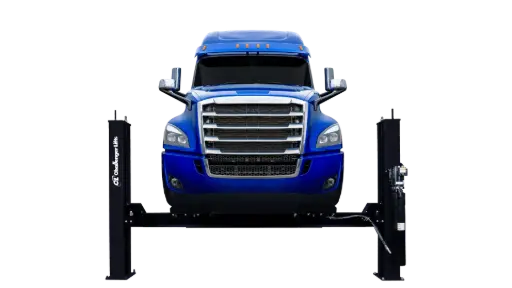

30,000 Lb Cap HD Four Post Lift
Runway Width 24In Max Wheelbase
317 In Overall Length
380" Anti Sway Device
Six Position Locking and Pneumatic Single Position Safety Release
Fold Down Approach Ramps with Jack Rails

15,000 lbs. capacity
Low-profile, adjustable heights allow for an unobstructed workspace when not in use
Two-hand use ensures technician safety

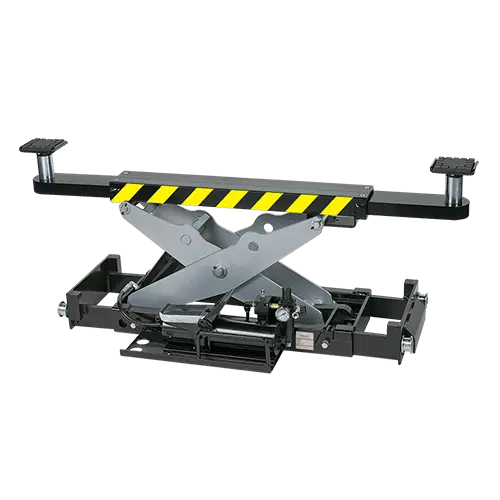

Air/hydraulic operated rolling jack – adjustble width (43 in. – 53.5 in.)

Symmetric 2-Post Lift
3-Stage Front And Rear Arms
Mechanical Lock Release
Adjustable Width And Height, (164 In. Height)
Includes 10315 Adapter Kit, 10313 (2)- 6" Adapters, (2) 10316 Adapter Caddies, Set Of Evfpk

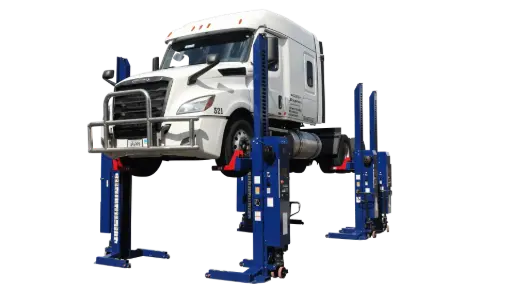

14k Cap per column, Battery Powered, Wireless,
Adjustable Carriage Assembly accommodates Wheel diameters from 5"- 24.5" Inches

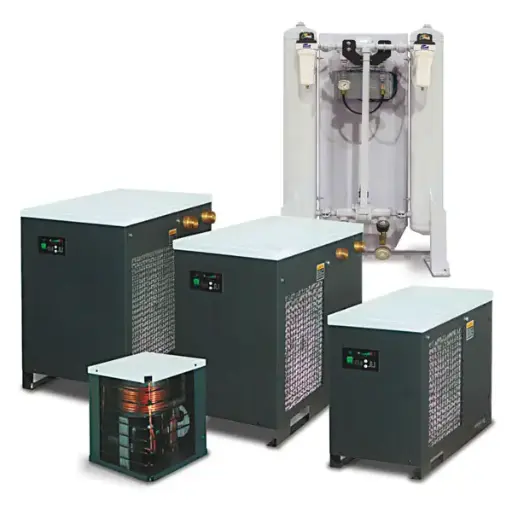

Refrigerated Air Dryer, (40 cfm @ 100° inlet, 100° ambient, 100 psi) 115V

Side Exhaust Down Draft, Solid Back, Heated
14' wide X 9' tall X 27'6" long inside dimensions
17' wide X 11'6" tall X 27'9" long outside dimensions
2 - 24" Diameter Exhaust Fans With 2HP 3PH Motors
14,000 CFM Combined
Includes Risers And Transitions For Elevated Fan Mounting
14 - 48" 2 Row LED Light Fixtures (board & driver fixtures, not LED bulbs)
Class I Division II Inside Access Fixtures
6300 Lumens, 62 watt, 5000k
Tri-Fold Entry Doors With Observation Windows
10' wide X 9' tall nominal opening
9'6" wide X 8'9" tall clearance through opening
Personnel Door With Observation Window Included
Swing Down Filter Racks With Hinges
18ga G90 Domestic Galvanized Sheet Metal
Structural Tubing Supports With Threaded Nutserts
Pre-Punched For Nut & Bolt Assembly
Hardware Included
Powder Coated White Option
2 - 24" Diameter Rain Cap (automatic damper cap)
6 - 24" Diameter Exhaust Duct (4' sections)
1 - 1.5 Million BTU (natural gas or propane)
14,000 CFM Heated Air Makeup Unit
10HP 3PH Supply Motor
Control Panel With Dual VFD's For Auto Pressure Control
Pre-Wired Control Panel
Stand & Washable Pre-Filters Included
10' Of Supply Duct From Heater To Booth Included
Recirculating Option In Bake 1 30" Diameter Intake Hood 1 30" Diameter Exhaust Duct (4' sections)
Standard Installation Of Booth & Heater
Does not include roof curbs, roof penetration, roof sealing, wall
penetration or sealing
Start-Up Of Heater (all utilities must in place for start-up to be performed)
Equipment Rental (fork lift)
Estimated Electrical Wiring (equipment only, does not include supply to
equipment)
ample power must be provided to equipment by others.
Estimated Dry Chemical Fire Suppression System
Crating Fee
Estimated Delivery
estimate figured on hotshot load
Price Does NOT Include Permits, Licenses, Electrical Supply Wiring To
Equipment, Air Lines, Gas Lines, Gas Regulator, Concrete Work, Roof/Wall
Penetrations, Building Modifications, Offsets In Duct or Trash Bin
