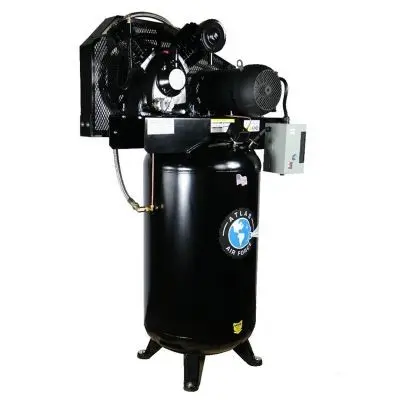

Atlas Automotive Equipment Air Force AF9P 7.5HP 80 Gallon Air Compressor with Plus Package
Internal Reference:
SE200
Features and Benefits:
· 3-Cylinder, 2-Stage Pump
- Commercial Grade
- 7.5hp, 1740 RPM Motor
- 80 Gallon Vertical Tank(Made in the USA)
- Air Output 145-175 PSI
- Extremely Quiet Operation
- Magnetic Starter Included, Adding ToLongevity Of The Unit
- Set of Vibro-Isolation Pads Included
- Hands Free Tank Drain Extension
- Compressor Oil Drain Extension Tube
- Finned Tank Inlet Tube For Reduced TankWater Accumulation
- Heavy Duty Metal Belt Guard
- Industrial Grade Pressure Switch(Hubbell) And EATON Starter220volt/1phase, 40 Amp Breaker Required
- 1 Year Parts Only Warranty
- Motor Running: 7.5 Horsepower
- Delivered-CFM 90 PSI: 23
- Delivered-CFM 175 PSI: 20
- Pressure Setting: 145-175 PSI
- Tank Capacity: 80 Gallons
- Air Outlet Size: 3/4" NPT
- Overall Dimensions: L 40" x W 24" x H 71"
- Motor Voltage: 220volt, 1PH, 40 Amp Breaker,Number 8 Wire Required
- Compressor Pump: 3 Cylinder, 2-Stage
- Automatic Low Oil Monitor
- Automatic Tank Drain
- Air Cooled Aftercooler
