  3. CMO Eletro/Hydraulic Self Piercing Rivet Gun, w/lithium battery
Default

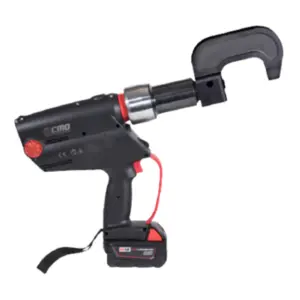

CMO Eletro/Hydraulic Self Piercing Rivet Gun, w/lithium battery

CMO Eletro/Hydraulic Self Piercing Rivet Gun, w/lithium battery

$ 7,500.00 $ 7,500.00

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
Prices subject to future change
Returns based on manufacturer's return policies

Internal Reference: SE168

FORD: APPROVED

Equipped Standard with: SPRG, case, universal dies, USB cable, battery, battery charger, 40mm arm and software.

Features:

  • Portable and light weight 4.8Kg / 10.5 lbs.
  • Powered by one Li-Ion Battery (18 VDC. 3.0Ah).
  • Low power failsafe.
  • Adjustable KN insertion force capable (20KN to 85KN).
  • Adjustable return time.
  • Wide range of C arms available (43mm to 240mm).
  • Riveting data download capability.
  • Pump motor with permanent magnets in continuous current.
  • Operating electronic pressure sensor
  • Uses Hydraulic oil ISO 15.
  • Very quiet. Less than 70dB at 1 mt. (3 ft.) distance.

OPTIONAL ACCESSORIES: 130 x 80mm arms, 240 x 140 arms, FORD Die kit
