Gold Med Heavy Duty Frame Straightening System

330,000.00 330,000.00

Not Available For Sale

This combination does not exist.

Terms and Conditions
Prices subject to future change
Returns based on manufacturer's return policies


Internal Reference: SE150

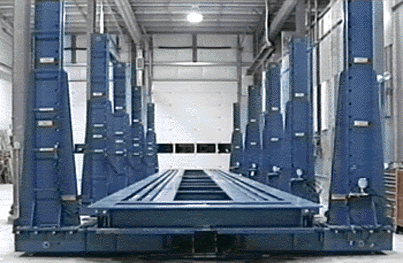

1. Gold Medallion 40 ft. x 102 in. Deck Bus Pull Range, 360° Frame Machine
2. (2) 50-Ton, 12 ft. Tall 360° Pulling Towers with 5/8 in. Pull Chains, Hooks & Hydraulic System
3. (2) 50-Ton, 10 ft. Tall 360° Pulling Towers with 5/8 in. Pull Chains, Hooks & Hydraulic System
4. Heavy-Duty 25 ft. Low-Profile Spring-Loading Ramps (Set)
5. Commercial 1.5 HP, 5-Gallon Electric/Hydraulic Pump System (Whole Rack)
6. Hydraulic Shut-off Valve & 4 in., 10,000 PSI Liquid-Filled Pressure Gauge at Each Tower
7. Hydraulic & Air Outlet Plumbing Kit (outlets every 10 ft.)

Heavy-Duty Accessories
• (1) Heavy-Duty Push/Pull Sliding Cross-Members for Rack Center
• (1) Deluxe Heavy-Duty GMC Centerline Gauge Set with Truck Tram
• (1) Deluxe Tool Board with Tractor Cab Tools
• (2) 25-Ton HD Hydraulic Jack Stands with Tall Inserts (Air Hydraulic Pump & Hose Included)
• (1) 25-Ton Standard Push Ram with Frame Spreader Blocks
• (1) Set of Chain Rests/Frame Rail Protectors (5 in., 9 in., 12 in.)
• (1) 10-Ton Hydraulic Maintenance Kit
• (1) Tower Adapter Bracing/Hanging for 10-Ton Maintenance Kit
• (1) Down Pull Adapter
• (1) Heavy-Duty Rail Hold-Down Anchor with Wedges
• (1) 25-Ton Heavy-Duty Flange Press with Adapters & Radius Kit
• (1) Heavy-Duty Flange Wrench
• (1) Heavy-Duty Narrow & Wide Flange Hook
• (2) Multi-Hole Pull Plates
• (6) 18 in. x 18 in. x ¼ in. Aluminum Slip Plates
• (1) 12 ft. Grade 100, 5/8 in. US Steel Chains with ½ in. Grab Hook
• (3) 9 ft. Grade 100, 5/8 in. US Steel Chains with 5/8 in. Grab Hook
• (4) 5/8 in. Grab/Grab Hooks
• (4) 5/8 in. Grab/Slip Hooks
