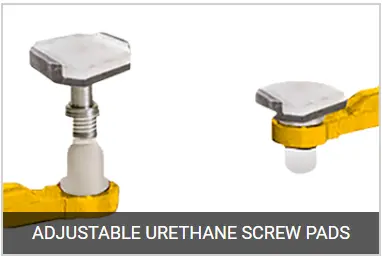

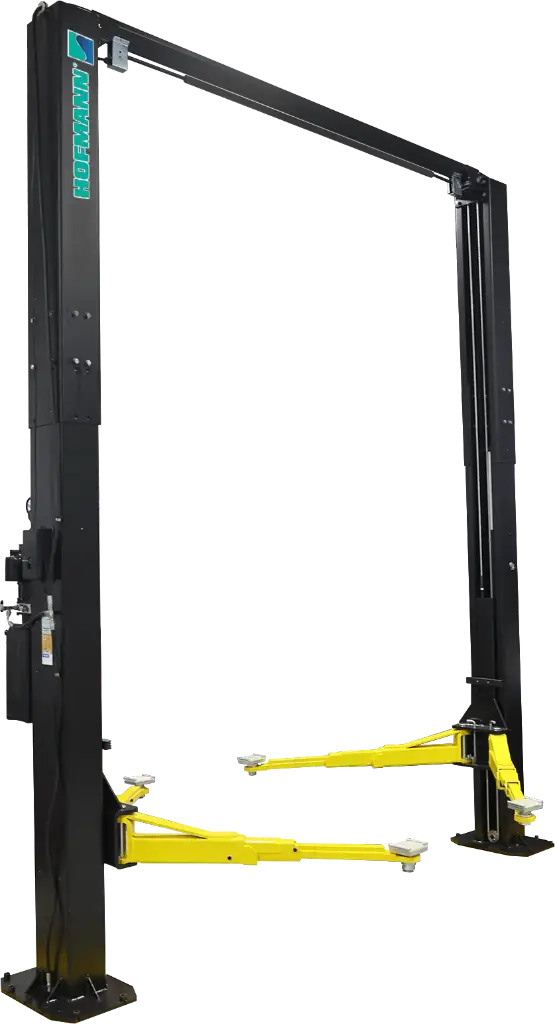

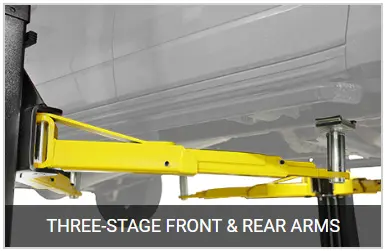

The 12k 2-Post lift represents the pinnacle of lifting technology, offering a multitude of exceptional features that include symmetrical lifting capabilities, extended-reaching front and rear arms, adjustable insert screw lifting pads and a cushioned overhead shut-off bar. With the potential for augmenting functionality through a range of optional accessories, the 12k 2-Post lift presents the opportunity to effectively boost shop productivity even further.
Symmetric
Configuration
12,000 lbs. | 5,443 kg
Lifting Capacity
61 seconds
Lifting Time
78" | 198cm
Max. Lifting Height
14'x24' | 427x732cm
Minimum Recommended Bay Size WxL Extended
14'x24' | 427x732cm
Minimum Recommended Bay Size WxL Standard
190"-199" | 483-505cm
Overall Height Extended
166"-175" | 421-445cm
Overall Height Standard
140" | 356cm
Overall Width
208-230V 60Hz 1Ph 30A 2HP / 1.5kW
Power Supply
