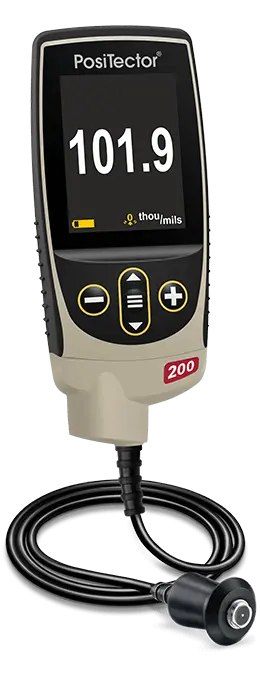

PosiTector 200 Coating Thickness Gages for Non-Metal Substrates

Coating Thickness Gages for Non-Metal Substrates

Non-destructively measures a wide variety of applications using proven ultrasound technology. Measure coating thickness over wood, concrete, plastic, and more. Advanced models measure up to 3 layers with graphics.

• Ready to measure—no calibration adjustment required for most applications
• Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
• USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Features

Simple

• Ready to measure—no adjustment required for most applications
• Large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• On-gage help explains menu items at the touch of a button
• RESET feature instantly restores factory settings

Durable

• Weatherproof, dustproof, and water resistant—IP65-rated enclosure
• Ergonomic design with durable rubberized grip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Responsive transducers provide fast, accurate readings
• Certificate of Calibration showing traceability to NIST or PTB included
• Proven non-destructive ultrasonic technique conforms to ASTM D6132 and ISO 2808

Versatile

• PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
• Auto rotating display with Flip Lock
• Mils/Microns switchable
• Selectable display languages

Powerful

• Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
• Max Thick Mode displays the deepest ultrasonic echo eliminating the need to adjust the Lo Range—ideal for ignoring unwanted surface echoes
• Screen Capture – save 100 screen images for record keeping and review
• Over 20 hours of continuous operation with 3 AAA batteries
• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
• Includes PosiSoft suite of software for viewing and reporting data
• Software Updates via web keep your gage current

Standard Models

• Measure the total thickness of a coating system
• Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

• Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system.
• Graphics mode with screen capture for detailed analysis of the coating system
• Storage of 250,000 readings in up to 1,000 batches
• Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
• Live graphing of measurement data
• SSPC-PA 9 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
• Touchscreen keyboard for quickly renaming batches, adding notes, and more
• Multiple stored calibration adjustments for measuring on a variety of coating applications
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
