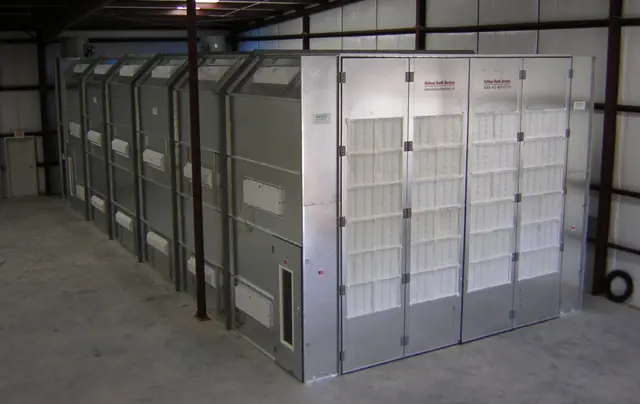

Heavy Truck Paint Booth, Pit Type Down Draft, Drive Through, 16' T x 16'W x 64'6" L ID
Internal Reference:
PE54
Truck Booth, Pit Type Down Draft, Drive Through, Heated
16' wide X 16' tall X 64'6" long inside dimensions
21' wide X 20' tall X 65' long outside dimensions (does not include mechanical)
2 - 42" Diameter Exhaust Fans With 10HP 3PH Motors
60,000 CFM Combined
Mounted On Elevated Fan Boxes
Double Row Exhaust Pit (concrete work by others, not included)
7' wide X 56' long
Grating, Pit Supports & Filter Trays Included
1.5" Thick Grating With 1/8" Bearing Bars, End Banded, Galvanized
700 pounds per square foot capacity
56 - 48" 2 Row LED Lights
Class I Division II Inside Access Lights
Bi-Fold Entry Doors With Observation Windows On Both Ends
12' wide X 16' tall nominal opening
11'6" wide X 15'9" tall clearance
4 - Personnel Door With Observation Window
18ga G90 Domestic Galvanized Sheet Metal
Structural Steel Supports
Pre-Punched For Nut & Bolt Assembly
Hardware Included
Powder Coated White Option
Heated Air Make Up Unit, Direct Fired Unit 2
3 Million BTU's Each Direct Fired Units
Includes Stands, Pre-Filter Box With Washable Filters
Includes 8' Of Supply Duct To Booth
Includes Dual VFD's For Balancing
20HP Motor
42" Diameter Rain Cap (automatic damper cap)
48" Diameter Intake Hood
42" Diameter Exhaust Duct (4' sections)
Crating Fee
Estimated Freight Charges (actual freight charges may vary)
Price is valid for 30 days
Price Does NOT Include Installation, Permits, Licenses, Electrical Wiring, Fire
Suppression System, Air Lines, Building Modifications, Offsets In Duct or
Trash Bin
Quote is based on standard metal building construction. Concrete, built-up and
standing seam roofs and tilt wall/masonry buildings will incur additional
charges
