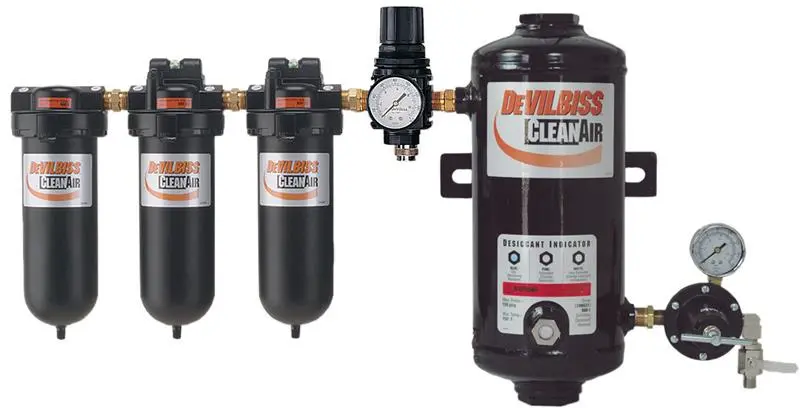

The DAD-503 is designed to be a point of use system. It is capable of removing dirt, water, water and oil vapor hydrocarbons, and odors from compressed air. It consist of a filter separator, coalescing filter, charcoal filter, flow-thru regulator, desiccant dryer, air regulator and main air supply shut off valve.
- Water Separator Filter
- Air Inlet and Air Outlet: 1/2" NPT (F)
- Air Flow Capacity: 100 CFM
- Max Operating Pressure: 150 PSIG (10.3 Bar)
- Maximum Temperature: 150 deg.F (65.6 deg. C)
- Automatic Drain: Standard
- Filter: 5 micron
- Coalescing Filter
- Air Inlet and Air Outlet: 1/2" NPT (F)
- Air Flow Capacity: 55 CFM
- Max Operating Pressure: 150 PSIG (10.3 Bar)
- Maximum Temperature: 150 deg.F (65.6 deg. C)
- Automatic Drain: Standard
- Pressure Differential Indicator: Standard
- Filter: 0.01 micron
- Charcoal Filter
- Air Inlet: 1/2" NPT (F)
- Air Outlet: 1/2" NPT (F)
- Air Flow Capacity: 75 CFM @ 100 PSI
- Maximum Inlet Pressure: 150 PSIG (10.3 Bar)
- Maximum Operating Pressure: 150 PSIG (10.3 Bar)
- Maximum Temperature: 150 deg. F (65.6 deg. C)
- Aerosol Filter: 0.003 ppm/wt
- Particulate Filter: 3.0 micron
- Flow-Thru Regulator
- Flow-Thru Ports: 1/2" NPT (F)
- Regulated Ports: 1/4" NPT (F)
- Air Flow Capacity (regulated) with 100 psi inlet: 28 CFM @ 60 PSI
- Maximum Inlet Pressure: 300 PSIG
- Regulated Pressure: 0-125 PSIG
- Maximum Temperature: 175 deg. F (79.4 deg. C)
- Desiccant Dryer
- Air Inlet and Air Outlet: 1/2" NPT (F)
- Air Flow Capacity: 25 CFM
- Max Operating Pressure: 150 PSIG (10.3 Bar)
- Maximum Temperature: 150 deg.F (65.6 deg. C)
- Humidity Indicator: Standard
- Water Vapor Removal: -40 deg. F Dew Point
- HAR-507 Air Regulator
- Air Inlet: 3/8" NPT (F)
- Air Outlet: 1/4" NPT (F) (3 each)
- Air Flow: 60 CFM
- Max Operating Pressure: 150 PSIG (10.3 Bar)
- Maximum Temperature: 120 deg.F (48.9 deg. C)
